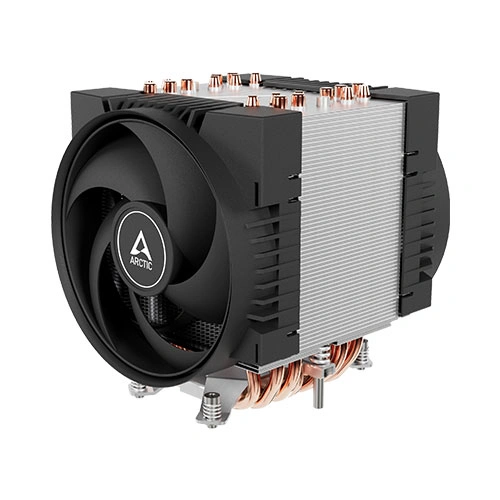

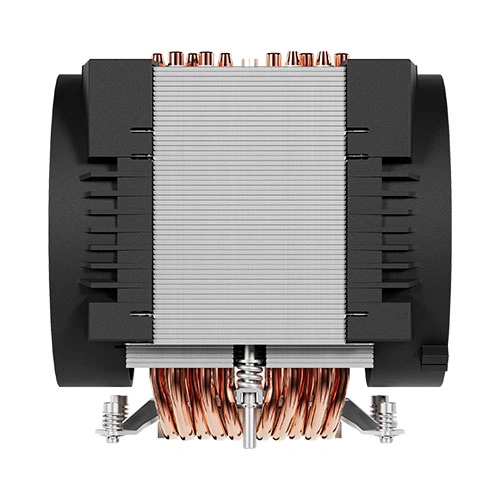

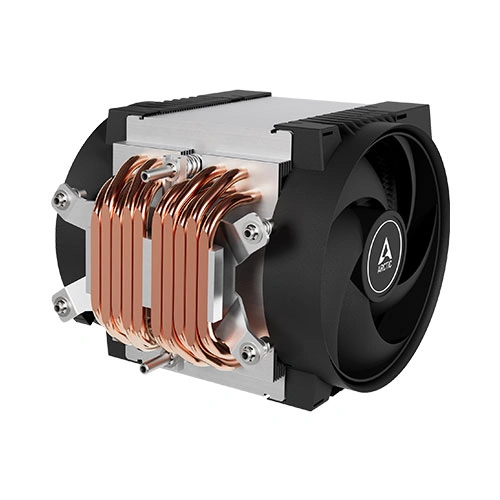

Freezer 4U-SP5 4U Server Cooler for AMD SP5

Features:

Server Cooler specifically designed for AMD SP5

The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.

Compact Design and Dual Socket Compatibility

With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 147 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

Powerful Fans in Push-Pull Configuration

The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

Premium Thermal Paste Included

The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.

Designed for Continuous Operationn

Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

General Specifications

• Thermal Compound:  ARCTIC MX-6 0.8 g Syringe incl.
• Operating Ambient Temperature: 0-40 °C
• Dimensions:  124 (L) x 147 (W) x 145 (H) mm

Compatibillity

• AMD: SP5
• Server Rack Unit : 4HE & up

Heatsink Specifications

• Heat Pipe: Direct Touch, Ø 6 mm x 10
• Number of Fins: 62
• Fin Material: Aluminium

Fan Specifications

• General: 2x 120 mm PWM Fans
• Fan Speed: 300–3300 rpm, PWM Controlled
• Connector: 4-Pin Plug
• Cable Length: 200 mm
• Bearing: Dual Ball Bearing
• Noise Level: 45.3 dBA
• Air Flow: 81.04 cfm | 137.69 m³/h
• Static Pressure: 4.35 mmH2O
• Current|Voltage: 0.29 A | 12 V DC
• Startup Voltage: 3.1 V DC
