Features

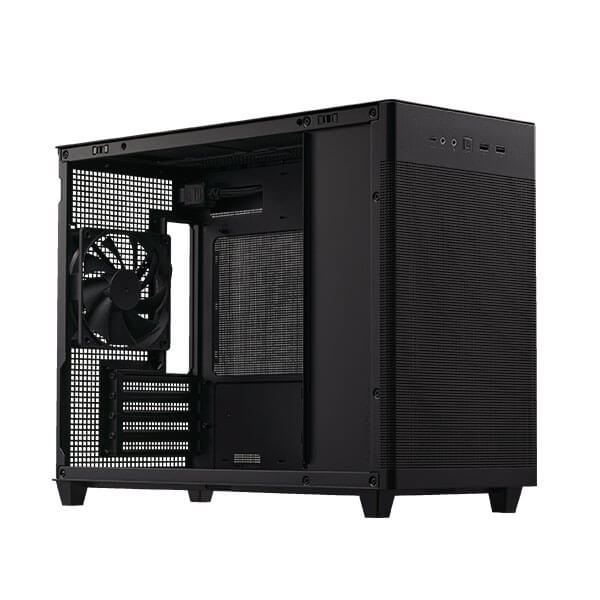

The ASUS Prime AP201 is a stylish 33-liter Micro-ATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

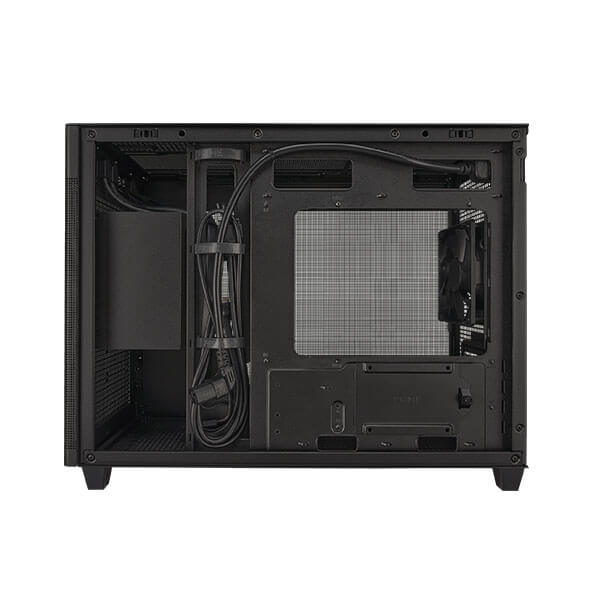

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

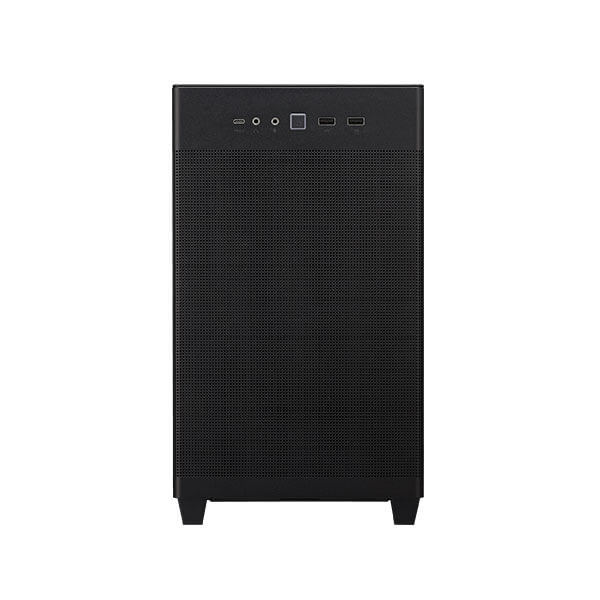

- Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Specifications:
| Model | AP201-BLACK |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Color | Black |
| Dimension (W*H*D) | 205 x 350 x 460 mm (33L) |
| Weight | 7 kg |
| Materials | Steel, Plastic/Steel, Plastic |
| I/O Ports | 2 x USB 3.2 Gen1, 1 x USB 3.2 Gen 2 (Type-C), 1 x Headphone, 1 x Microphone |
| 3.5"/2.5" Drive Bays | 3 |
| 2.5" Drive Bays | 1 |
| Expansion Slots | 4 |
| Vertical VGA | NA |
| Maximum GPU Length | 338 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 140-180 mm |
| Radiator Compatibility | Top: 120/140/240/280/360 mm, Rear: 120 mm |
| Cooling Support | Top: 2 x 140mm / 3 x 120mm, Rear: 1 x 120 mm, Bottom: 2 x 120 mm |
| Pre-installed Fans | Rear: 1 x 120 mm |
| Removable Dust Filters | Bottom |
| Cable Routing | Max. 32mm |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without prior notice. |
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Color | Black |
| Material | Steel, Plastic |
| Expansion Slots | 4 |
| Motherboard Size | M-ATX, M-ITX |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 180 mm |
| Max Gpu Length | 338mm |
| Max 3.5" HDD | 3 |
| Max 2.5" SSD | 1 |
| Pre Installed Fans | 1 |
| Max Fan Support | 6 |
| Radiator Support | 360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2 Gen1, USB 3.2 Gen 2 (Type-C), Headphone, Microphone |
| Warranty | 1 Year |
| Note*** | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
