Feature:

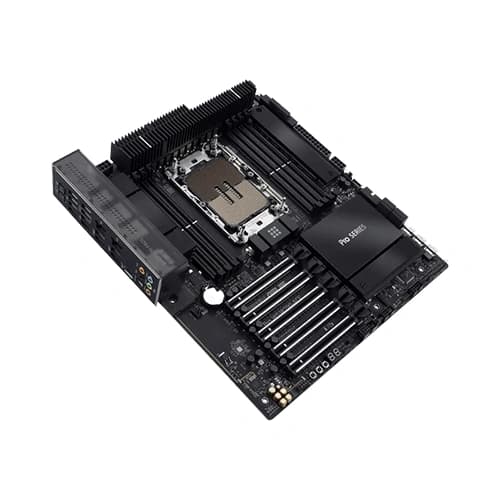

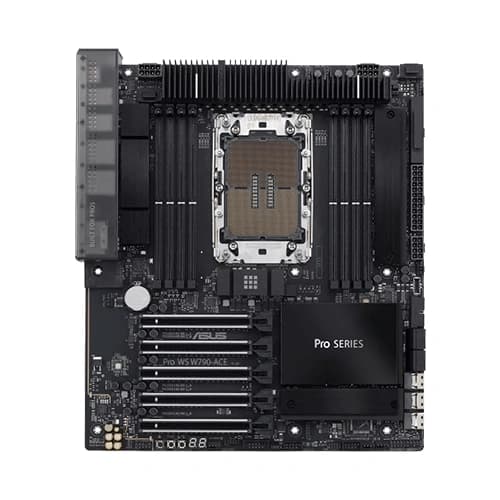

Intel W790 (LGA 4677) CEB workstation motherboard, PCIe 5.0 x16, M.2, 10G and 2.5G LAN, Server-grade Remote Management, 12+1+1 power stages, front and Rear USB 3.2 Gen 2x2 Type-C

• Intel LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
• CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
• Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C® and 3 SlimSAS
• Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software – ASUS Control Center Express
• Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility

Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790-ACE presents a professional, low-profile look for content creators.​

Multi-GPU support

The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.

8-pin power connector

Additional PCIe 8-pin power connector can add power output stability when creators and developers use multiple graphics cards.

Reliability with supreme memory overclocking

The Pro WS W790-ACE supports 4-channel 2DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.

Two M.2

The Pro WS W790-ACE features two M.2 slots wired for PCIe 4.0 bandwidth. Creators working with massive video files can assemble multiple NVMe drives in a RAID formation for massive I/O bandwidth and seamless playback in their editing bays. Two of these M.2 slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads, and they feature ASUS Q-Latch for easy drive installation and replacement.

More storage

To connect even more high-speed storage, onboard SlimSAS slots let you connect industrial SSDs - not to mention server and networking equipment — through the fast PCIe 4.0/PCIe 3.0 interface.

Front-panel connector

The front panel USB 3.2 Gen 2x2 connector is ready for next-gen PC cases and devices.

Remote Management

This motherboard supports remote management with ASUS IPMI expansion card, bringing the benefits for applications that ask for high-performance systems, yet sufficiently and remotely monitoring system status and able to provide real-time troubleshooting. Administrators can remotely communicate with client devices to take some corrective actions — such as resetting or power cycling a system.

ASUS Control Center Express

The Pro WS W790-ACE comes with ASUS Control Center Express - a real-time IT monitoring and management software designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks.

Chipset heatsink

A dedicated and beefy chipset heatsink draws heat away to maintain optimum operating temperatures.

M.2 heatsinks

Two M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. M.2 backplate blocks on select slot go even further to ensure that you get peak performance from your next-gen drives.

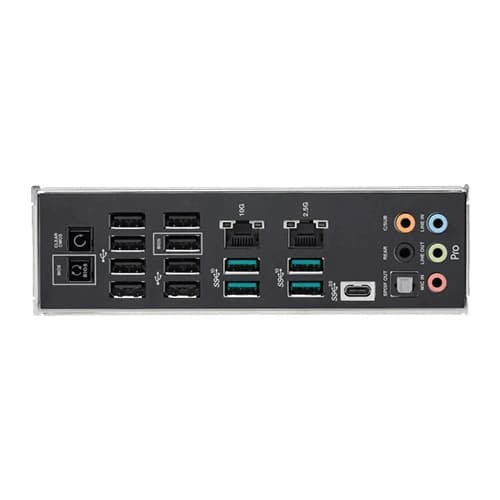

Pre-mounted I/O shield

The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.

Protect your graphics cards

SafeSlot is a PCIe slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.

24/7 reliability

Optimized for around-the-clock operations, The ASUS Pro WS W790 series is tested under temperatures of up to 45° C and humidity of up to 80% in order to ensure it can thrive in different environments.
