Features:

MasterLiquid Atmos II VRM Fan

• VRM Fan for enhanced cooling experience
• SickleFlow Edge ARGB fans​
• Ultra-low profile pump design​
• Quick and easy installation​

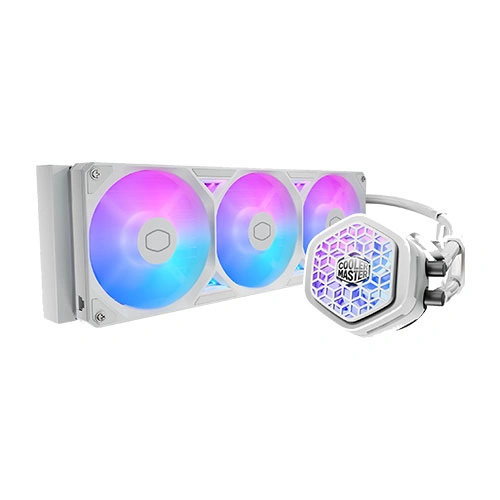

MASTERLIQUID ATMOS II VRM FAN

Introducing Cooler Master’s all-new Atmos II VRM Fan CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II VRM Fan enabling users to achieve next-level cooling performance. The low-profile pump design makes it ideal for fitting into compact cases. With exceptional cooling performance, quieter operation, and the Atmos II VRM Fan delivers the perfect blend of performance, customization, and silence. Make it yours with the MasterLiquid Atmos II VRM Fan.

VRM FAN

The VRM fan module cools motherboard hot zones with airflow in six directions. It can reduce temperatures by up to 10.2°C*, to improve both stability and performance.

Precision VRM Cooling

Validated by Cooler Master Lab, the VRM fan delivers targeted cooling, reducing temperatures by up to 10.2°C across critical components for enhanced performance and stability.

Patented design

Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality

Fully automated production and assembly of the pump with fully recorded production history.

Tough. Reliable. Built to Endure.

Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability—designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70°C for 3,000 hours and 120 °C for 12 hours*, ensuring reliable performance under the harshest conditions.

PRE-INSTALLED SICKLEFLOW EDGE ARGB FAN

High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.

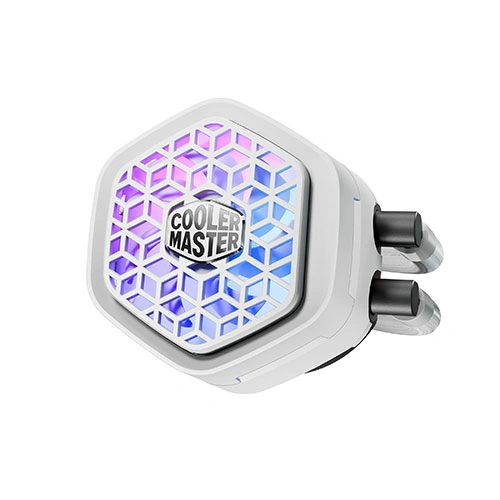

ULTRA-LOW PROFILE PUMP DESIGN

The flat design allows installation in cases of different sizes while maintaining strong performance.

QUICK AND EASY INSTALLATION

A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.

Offset Mounting Brackets for LGA 1851

Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851*, which precisely dissipate 4°C of heat from the center of the CPU.

• CPU Socket: Intel LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
• CPU Socket: AMD AM5 / AM4
• Radiator Material: Aluminum
• Pump Dimensions: 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
• Pump Profiles: Addressable Gen2 RGB
• Pump Speed: 3400 ± 300 RPM
• Pump MTTF: >210,000 Hours
• Pump Noise Level: 25 dBA (Max)
• Pump Rated Voltage: 12 VDC
• Pump Power Consumption: 3.84 W
• Pump Connector: 3-Pin ARGB + 4-Pin PWM
• Tube Length: (360) 400 mm
• Fan Dimensions (L x W x H): (360) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
• Profile: Addressable Gen 2 RGB
• Fan Speed: 690 ~ 2500 RPM ± 15%
• Fan Airflow: (360) 322.8 m³/h (190 CFM)
• Fan Air Pressure: 3.61 mmH2O
• Fan MTTF: >160,000 Hours
• Fan Noise Level: (360) 38.5 dB(A)
• Fan Bearing Type: Loop Dynamic Bearing
• Fan Connector: 7-Pin PWM + ARGB
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.5 A
• Fan Safety Current: 0.8 A
• Fan Power Consumption: 6 W
• Radiator Size: 360
• Cooler Type: Liquid Cooler
• VRM Fan Dimensions: 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
• VRM Fan Wire Length: 1000 mm
• VRM Fan Fan Speed: 450~4000 RPM ±10%
• VRM Fan Fan Airflow: 15.8 m³/h (9.3 CFM)
• VRM Fan Fan Air Pressure: 2.8 mmH₂O
• VRM Fan Fan Noise Level: 36 dB (A)
• VRM Fan Fan MTTF: >50,000 Hours
• VRM Fan Fan Bearing Type: Loop Dynamic Bearing
• VRM Fan Fan Connector: 4-Pin PWM
• VRM Fan Fan Rated Voltage: 12 VDC
• VRM Fan Fan Rated Current: 0.15 A
• VRM Fan Fan Safety Current: 0.25 A
• VRM Fan Power Consumption: 1.8 W
