Features:

• ATX 3.1 ready, native PCIe 5.1 connector
• Supports NVIDIA GeForce RTX 40 / 50 Series graphics cards
• Full Modular design, Flat Cables
• Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP

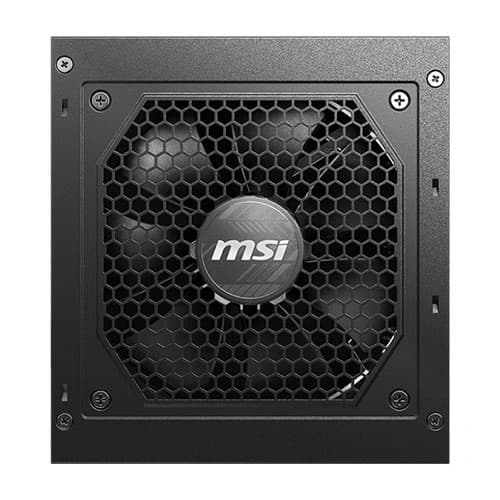

• 120 mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Excursion: 1500W (*up to 200% of the PSU's rated power for 100μs)
• Input Frequency Range: 47-63Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

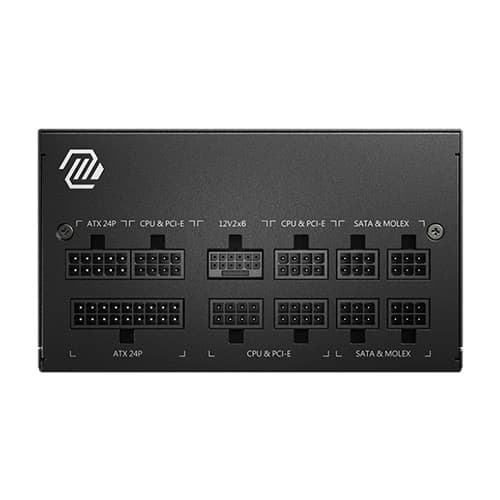

• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.1 (16 pin): 1 (450W)
• FDD (4 pin): 1
• PCI-E (6+2 pin): 3
• SATA (15 pin): 8
• PERIPHERAL (4 pin): 4

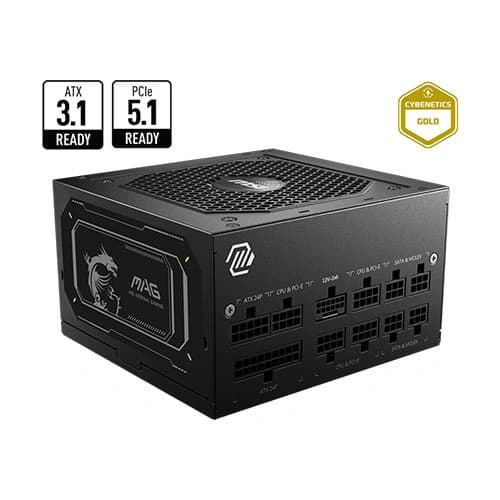

ATX 3.1 Ready

It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

DUAL COLOR 16-PIN CABLE

The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the Dual-color 16-pin cabledual-color also won.

LEVEL UP YOUR GAME

With native 16 PIN PCIe connector this power supply is ready for NVIDIA GeForce RTX 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.

ENERGY EFFICIENCY CERTIFICATION

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

FLUID DYNAMIC BEARING

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge

DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
